Although construction
period will be reduced
to half, cost is equal in the case of conventional model.
|
|
|
CFJoint
(New Loose Flange Pipe Joint) is a next-generation flanging (TSUBADASHI
) pipe fitting which Nowla Engineering Co., Ltd. has allowed for
efficient flange junction, using its own self-sealing type gasket.
(TSUBADASHI method is a method processing the edge of pipe to
the shape of brim)
Characteristics of CF oint
Characteristic of CF joint, by self-sealing
gasket, the outer peripheral surface side and seal of elastic
gasket is crimped toward reinforcing ring about pressure tube
increases, so increase the power sealed, the
strength of |
each bolt is in resistant
to extubation of the internal pressure may be.
Therefore, the number of bolts are over
half than in the past, and the flange is also compact.
|

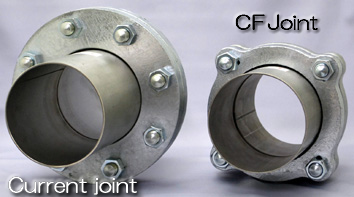

Comparison
with Conventinal Joint
|
@ |
Illustration
of Self-Seal Gasket |
|
@ |
|
|
